The Allais Effect – Coincidence Between Newtonian and LeSagian Gravity
Abstract. This paper reviews the alleged Allais Effect, i.e., anomalous behavior of pendulums or gravimeters sometimes observed during a total solar eclipse.
With the Moon in a direct line between the Earth and Sun, the potential for an additional gravitational perturbation is examined as a possible contributor to the effect.
Both a classical Newtonian “attractive” gravitational approach and one based on a “pushing” gravitational concept first introduced around Newton’s time by Fatio and LeSage are examined.
Results indicate that both yield surprisingly equivalent results – a possible explanation, or part of one; or merely a coincidence?
- INTRODUCTION
“The Allais effect is the alleged anomalous behavior of pendulums or gravimeters which is sometimes purportedly observed during a [total] solar eclipse. The effect was first reported as an anomalous precession of the plane of oscillation of a Foucault pendulum during the solar eclipse of June 30, 1954, by Maurice Allais, a French polymath who went on to win the Nobel Prize in Economics. Allais reported another observation of the effect during the solar eclipse of October 2, 1959 using the paraconical pendulum he invented … Maurice Allais emphasized the ‘dynamic character’ of the effects he observed:
‘The observed effects are only seen when the pendulum is moving. They are not connected with the intensity of weight (gravimetry), but with the variation of weight (or of inertia) in the space swept by the pendulum. Actually, while the movement of the plane of oscillation of the pendulum is inexplicable by the theory of gravitation, the deviations from the vertical are explained perfectly by that theory. The deviations from the vertical […] correspond to a static phenomenon, while my experiments correspond to a dynamic phenomenon’.”
“Besides Allais’ own experiments, related research about a possible effect of the Moon‘s shielding, absorption or bending of the Sun‘s gravitational field during a solar eclipse have been conducted by scientists around the world [See Table 1]. Some observations have yielded positive results, seemingly confirming that minute but detectable variations in the expected behavior of devices dependent on gravity do indeed occur within the umbra of an eclipse, but others have failed to detect any noticeable effect.” [1]
Table 1 lists attempts to reproduce the Allais effect through 1995. Subsequently, NASA’s Marshall Space Flight Center tried to encourage coordination worldwide among several observatories during the total solar eclipse of August 11, 1999, to test the Allais effect.
However, Allais was critical of the results, finding that “the period of observation was ‘much too short […] to detect anomalies properly’.” Further observations conducted by Xin-She Yang and Tom Van Flandern found that “the gravitation anomaly discussed here is about a factor of 100,000 too small to explain the Allais excess pendulum precession […] during eclipses,” concluding that “the original Allais anomaly was merely due to poor controls.”
More recent experiments during the solar eclipses of July 22, 2009, and July 11, 2010, in China and Argentina, respectively yielded mixed results. One scientist from the China attempt observed the effect. However, an automated Foucault pendulum used in Argentina yielded “no evidence of a precession change of the pendulum’s oscillation plane (< 0.3 degree per hour).” [1]

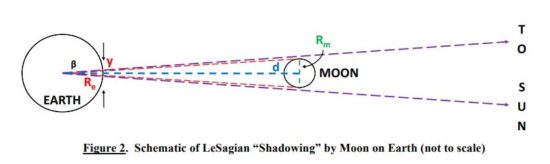

This paper assumes the Allais Effect is possible and examines both a classical Newtonian “attractive” gravitational explanation as well as one based on “pushing gravity,” as per Fatio and LeSage. [2]
I myself uncovered another intriguing “coincidence” during my investigation of asymmetry with regard to the ocean tides. Noting that “neither the exact solution to the differential gravitational force approach nor incorporating the effect of the Earth’s barycentric centrifugal force was able to establish the alleged symmetry of the tides across the Earth’s hemispheres,” I found that “if one combines the barycentric effect with the Moon’s gravitational force directly, i.e., without the differential effect, … the differences between [the net forces at] corresponding locations in each hemisphere are quite small, … < 1{154653b9ea5f83bbbf00f55de12e21cba2da5b4b158a426ee0e27ae0c1b44117} of their average value. Similarly, the differences between the angles for these net forces at corresponding locations is quite small, … again < 1{154653b9ea5f83bbbf00f55de12e21cba2da5b4b158a426ee0e27ae0c1b44117} of their average value. What this suggests is that combining the barycentric centrifugal force and the Moon’s gravitational (direct, not differential) forces vectorially produces the alleged symmetry between the tides on the opposite hemispheres … We are left to ponder whether there is an alternative explanation for the alleged symmetry of the tides other than accepting the approximation employed when deriving the differential gravitational effect … Might the combination of the barycentric centrifugal and Moon’s direct gravitational forces explain what has so far been attributed to an approximation in the differential gravitational force derivation?” [6]
- CONCLUSION
Whether or not the Allais Effect is real remains in question. Repeated experiments sometimes reproduce the effect, or something similar, and other times show no effect at all. Starting from the premise that the Allais Effect is possible, this paper sought to examine the plausibility of a gravitational explanation from both the classical Newtonian “attractive” perspective and equally contemporary, but much less accepted, “pushing” model for gravity first introduced by Fatio and LeSage. The results indicate that, using either approach, the Moon may contribute an additional 0.6{154653b9ea5f83bbbf00f55de12e21cba2da5b4b158a426ee0e27ae0c1b44117} to the gravitational force from the Sun on the Earth during a total solar eclipse, which may explain, or be part of an explanation for, the alleged Allais Effect. Therefore, if one accepts Newton’s gravitational equation as empirically correct, then a LeSagian gravitational “pushing” concept is at least consistent with the quantitative results.
